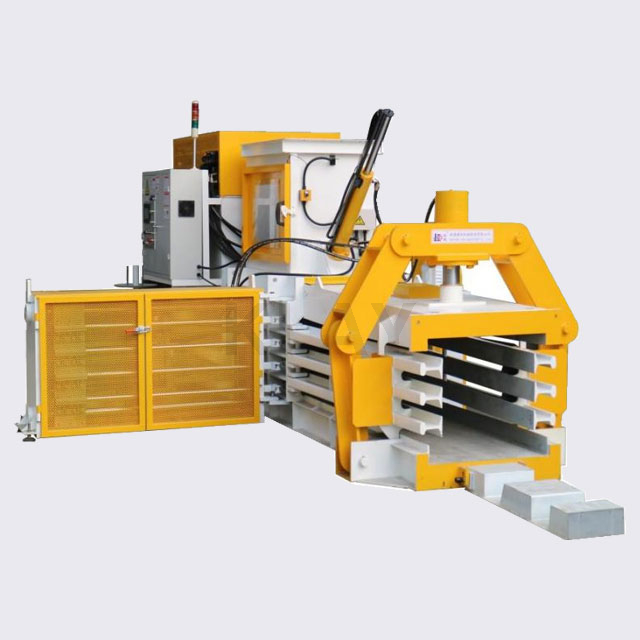

Y82H120 Fully Automatic Horizontal Cardboard Plastic Paper PET Baler

Availability:
Quantity:
sharethis sharing button
  • Y82H120

  • KLAY


Application


Y82H120 Fully Automatic Horizontal Cardboard Plastic Paper PET Baler can be used to compress all kinds of non-metal materials. Such as cardboard, carton, shredded paper, cotton yarn, plastic, straw, foam, wool, loose fiber, clothing, fabric, tobacco and many other loose materials. Users can set the bale length according to the need of transpiration and storage. Good way to reduce the cost of waste material delivery.


PET-BALER-DETAILS


Features & advantages


1. Man machine interface, intuitive and easy to operate, automatic detection of pressure and fault;

2. Decentralized cutter design and high-strength stressed beam and frame design can effectively reduce the load of the whole machine, ensure stable operation and prolong service life;

3. The emergency stop button is installed independently, and the emergency stop can be carried out at any time under any state to ensure safety;

4. The running process is displayed in real time on the screen to understand the working steps and processes at any time;

5. Record packaging data in real time and accurately record work capacity; Freely set the package length and reasonably allocate the storage and transportation space;

6. The floating necking shrinking structure design, combined with the pressure self inspection, forms the automatic adjustment of the outlet size and effectively ensures the forming density of the package;

7. The main hydraulic cylinder adopts trunnion installation, which can effectively eliminate the influence of torque and offset,also significantly improve the service life.

Horizontal paper baler Details-


Service


1. No matter before or after selling, you can get 24 hours online service.

2. Any needed machine parts can be supplied with professional guiding and competitive price.

3. Engineer can be dispatched abroad for installation and maintenance

4. Due to quality issue,free parts provided during warranty.


Production & work shop:


horizontal-pet-baler-workshop



Model

Y82H60Y82H80

Y82H100

Y82H120

Y82H150

Thrust force

60Ton80Ton

100Ton

120Ton

150Ton

Bale size(L*W*H)

110*75cm

110*75cm

110*110cm

110*125cm

110*125cm

Feed opening size(L*W)

150*102cm150*102cm

180*102cm

210*102cm

240*102cm

Capability

(depends on material)

3-5tons/hour4-7tons/hour

5-9tons/hour

7-11tons/hour

10-13tons/hour

Bale weight

400-700Kg
600-900Kg

800-1100Kg

900-1200Kg

1000-1300Kg

Main Motor Power

22KW37KW

45KW

55KW

90KW

Machine size(L*W*H)

688*385*355cm

688*340*360cm

856*395*455cm

925*415*485cm

1000*415*491cm

Weight (approx.)

9tons
12tons

18tons

21tons

26tons



PET-CARDBOARD-BALER-WITH-DOOR
